Analog Control Type Edge Guide System 200kg 150 Watt With 14m/S Speed Web Guiding Edge Position Control

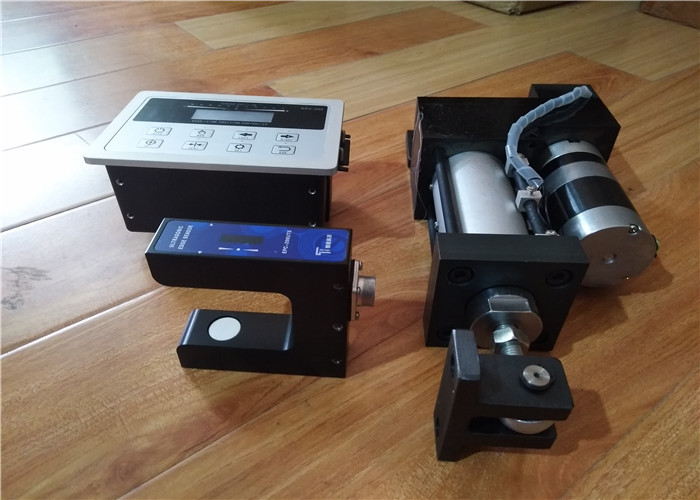

Web guiding system including web controller + ultrasonic sensor + Servo motor drive
Rolling material edge position control system overview
System Composition
Edge position control system is consists of edge position controller, edge position sensor, and servo motor drive 3 parts.
Application:
Suitable for edge position control of printing machine, splitting machine, compound machine, coating machine, rubber machine, textile machine etc.
Sensor for suitable material
| Material | Photoelectric sensor EPS-A | Photoelectric sensor EPS-B | Ultrasonic sensor EPS-C | Reflective shade guide Sensor EPS-D |
| Transparent Film | | | √ | |
| Non-transparent film | √ | √ | √ | √ |
| paper | √ | √ | √ | √ |
| foil | √ | √ | √ | √ |
| Sheet metal | √ | √ | √ | √ |
| textile | √ | √ | | √ |
| Breathable material | √ | √ | | √ |
| Photosensitive material | | | √ | |
| Dusty environment | | | √ | |
| Deviation method | Trace edge | Trace edge | Trace edge | Trace edge, trace line |
Edge position control system’s selection
1. Servo edge position control system constitute
Features: high accuracy, fast respond, support to trace edge and trace line working mode
Controller: EPC-200 analog edge position controller
Detector:
| Item NO. | EPS-B | EPS-C | EPS-D |
| Detection Mode | Photoelectric correlation | Ultrasonic correlation | Aberration correlation |
| Tracing mode | Trace edge | Trace line | Trace edge/line |
Motor drive: EPD-204
- Digital edge position control system constitute
Features: cost-effective web guiding system, support to trace edge and trace line working mode, but it is not suitable for transparent material.
Controller: EPC-100 digital edge position controller
Detector:
| Item NO. | EPS-A | EPS-B |
| Detection mode | Photoelectric reflection | Photoelectric correlation |
| Tracing mode | Trace edge | Trace edge |
Motor: EPD-104
- Customized digital edge position control system constitute
Features: suitable for transparent material, support trace edge working mode, high performance & cost-effective.
Controller: EPC-100 digital edge position controller customized
Detector:
| Item NO. | EPS-C |
| Detection mode | Ultrasonic correlation |
| Tracing mode | Trace edge |
Motor: EPD-104
EPC-200 edge position control system.pdf
